SCI - 700 Series

Description

SCI-700 Series sensor nodes are miniaturized instruments for monitoring toxic and harmful gases in the atmospheric environment of industrial parks. The monitoring parameters include NH3, Cl2, HCl, H2S, HF, temperature, humidity and so on. The instrument, combined with electrochemical sensors and metal oxide sensors, is equipped with simultaneous detection of multiple parameters. It has the characteristics of accurate data, high time resolution, many kinds of test parameters, small volume, and a low price. It is suitable for grid and dense distribution. SCI-700 Series instrument is based on wireless communication technology. The amount of sensor network monitoring devices could communicate safely with the server and establish a precise grid monitoring platform to collect monitoring data onto the “cloud”. With a tight installation and meteorological parameters, it will pick out the danger signal, effectively decreasing harm to the humans and the environment from toxic and harmful gases.

Specifications

Download Spec Sheet
Measurement Performance
Parameters
Principle
Range
Cl2
Electrochemical Method
0-20ppm
HCI
Electrochemical Method
0-20ppm
H2S
Electrochemical Method
0-50ppm
NH3
Electrochemical Method
0-50ppm
HF
Electrochemical Method
0-10ppm
VOCs
Metallic Oxide
0-10ppm

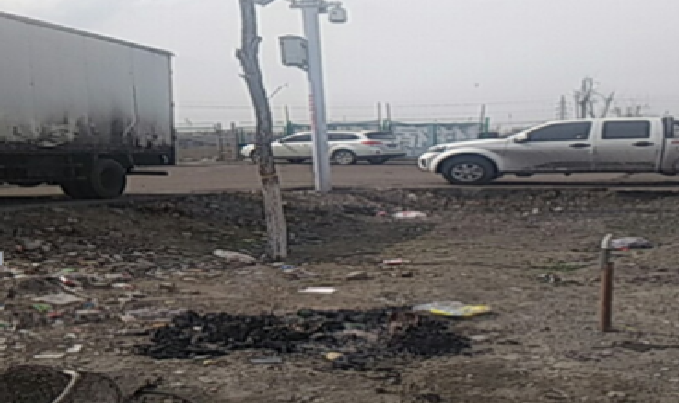

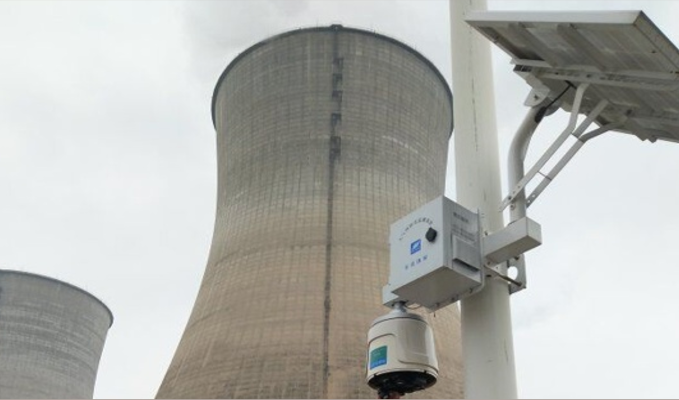

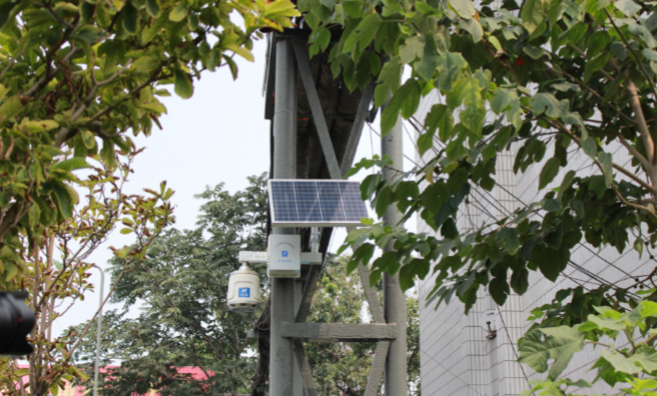

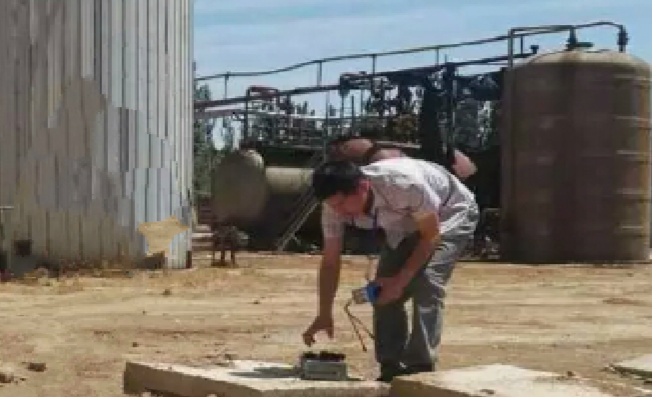

Senor Applications

Industrial Area Monitoring

Residential Area Monitoring

Waste Incineration Monitoring

Emergency Monitoring
