SCI - 608 – Criteria Pollutant Sensor

Description

Sailbri Cooper’s SCI-608 is a low cost air quality monitoring solution designed for accurate highly time resolved measurement of criteria pollutant levels. The SCI -608 utilizes state of the art sensor technology enhanced with a machine learning calibration system and a convenient cloud-based data acquisition and visualization system. The monitor has been extensively field tested, is easy to install and can provide the user with real time data within minutes of setting up.

Applications

  • Real Time Alternative to Samplers
  • Smart Cities
  • Pollution Source Identification and Locating
  • Traffic Pollution Monitoring
  • Industrial Fence Line Monitoring
  • Emergency Monitoring
  • Air Quality Model Validation
  • Community Based Monitoring
  • Pollution Migration Mapping

Specifications

Download Spec Sheet
Measurement Performance
Pollutant
Detection Principle
Units
Range
Detection Limit
Resolution
SO2

Electrochemical Sensor
ppb

0 ~ 500

5
0.01
NO2
Electrochemical Sensor
ppb

0 ~ 500

5‍
0.01
CO
Electrochemical Sensor
ppm
0 ~ 50

0
‍‍
0.01
O3
Electrochemical Sensor
ppb

0 ~ 500

5
‍‍
0.01
PM10
Light Scattering
μg/m3
5 ~ 1000
5
1
PM 2.5
Light Scattering
μg/m3
5 ~ 1000
5
1

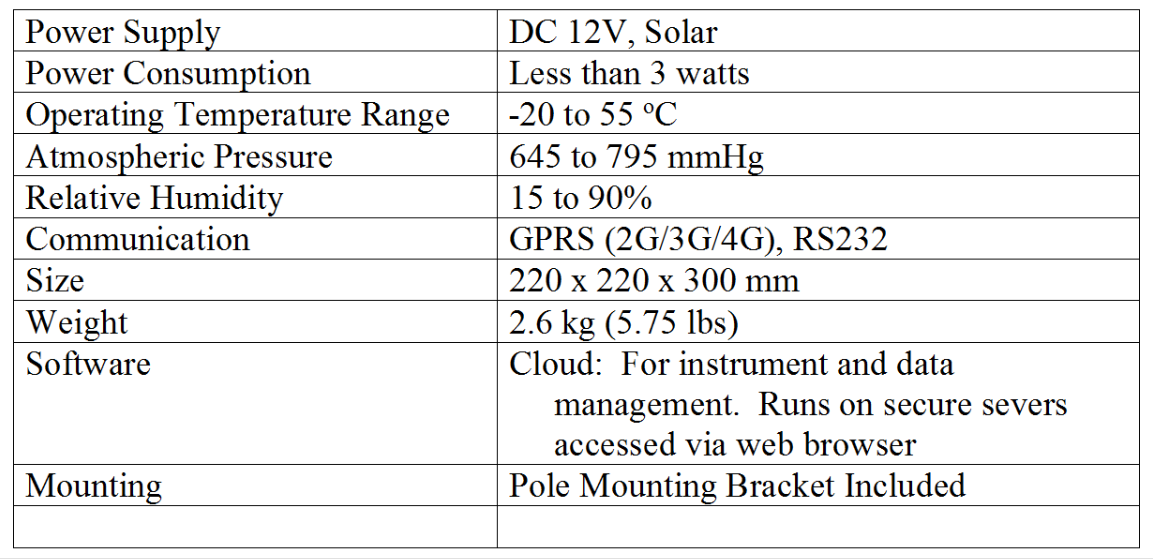

Operating Parameters
Power Supply
DC 12V, Solar
Power Consumption
Les than 3 watts
Operating Temperature Range
-20 to 55 oC
Atmospheric Pressure
645 to 795 mmHg
Relative Humidity
15 to 90%
Communication
GPRS (2G/3G/4G), RS332
Size
220 x 220 x 300 mm
Weight
2.6kg (5.75 lbs)
Software

Cloud: For instrument and data management. Runs on secure severs accessed via web browser
Mounting
Pole Mounting Bracket Included

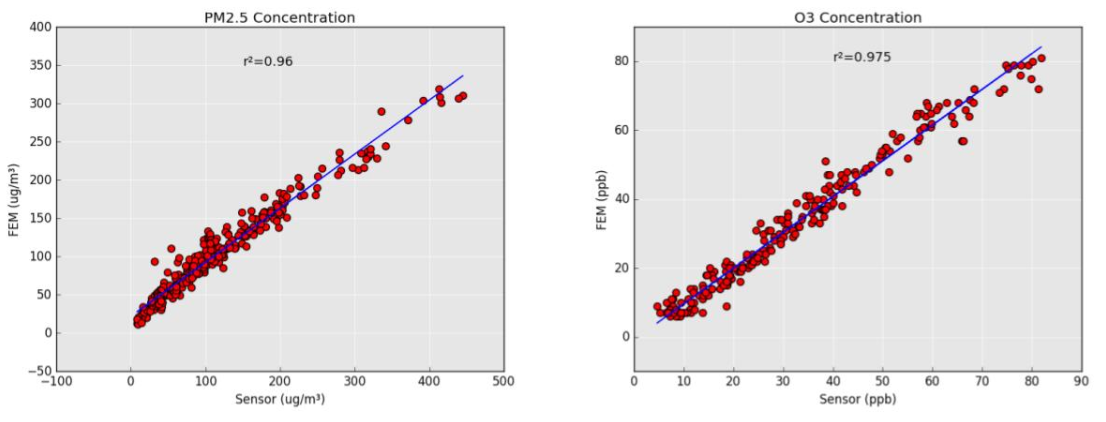

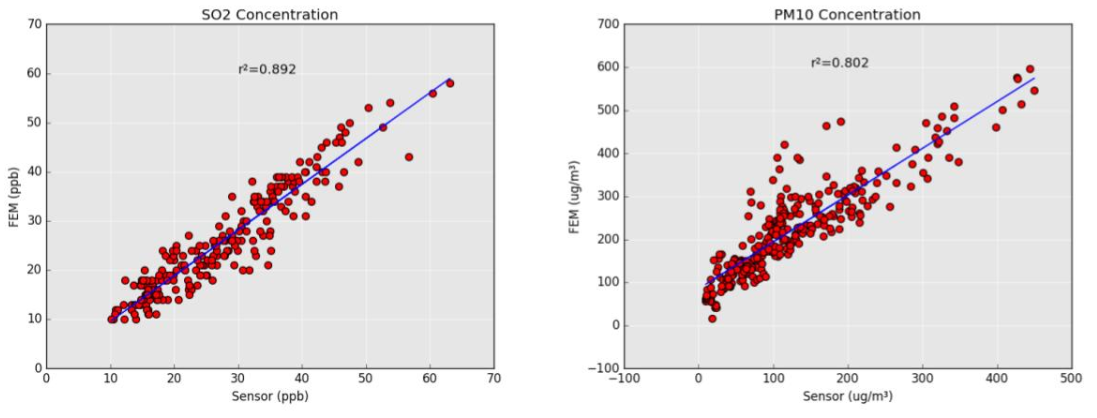

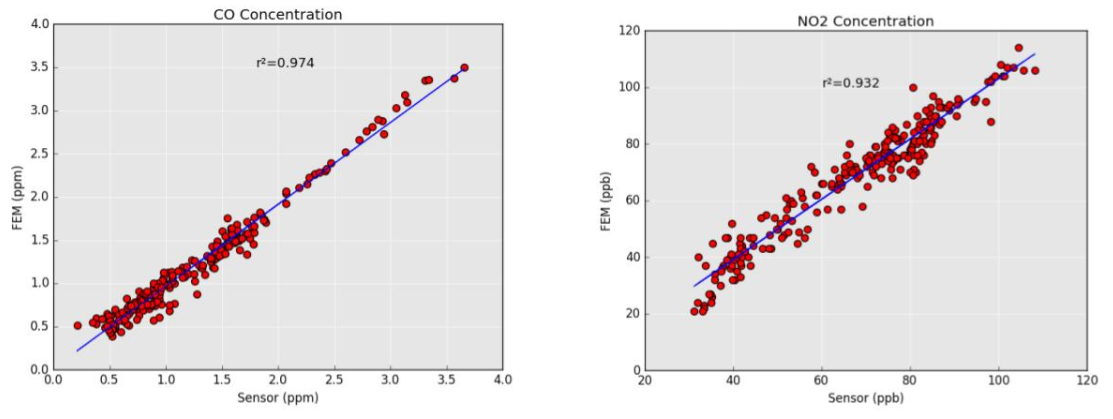

Accuracy
Sail Bri Cooper's sensors have demonstrated excellent correlation with reference method sensors with corelation coefficients as folows: CO = 0.97, NO2 = 0.93, O3 = 0.975, SO2 = 0.89, PM2.5 = 0.96, PM10 = 0.8
